Your Position : Home > products > BAR CUTTING MACHINE

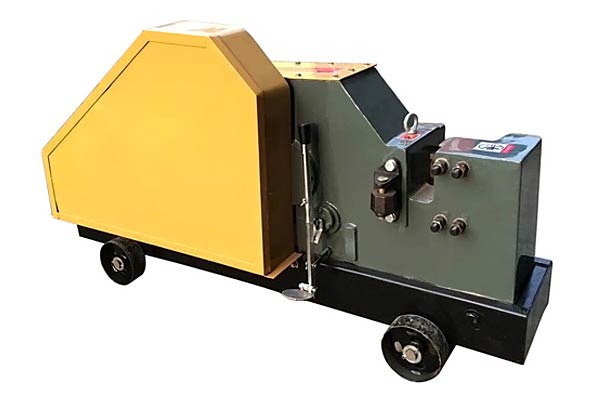

GQ50 BAR CUTTING MACHINE
Cut round steel bar diameter:• （φ6-φ45）mm
Motor power:• 4kw
Packing size:• 1560x500x800mm
Cutting frequency:• 28times/min
Motor revolving speed :• 2870r/min
We're here to help:Easy ways to get the answers you need.
Zhengzhuang Village, Xingwan Town, Xingtai City, Hebei Province, China
| Bar cutter Model |
GQ40A |
GQ40B |
GQ40C |
GQ50 |
GQ50A |
| Guarantee |
2 years |
2 years |
2 years |
2 years |
2 years |
| Diameter of bar |
40 mm |
40 mm |
42 mm |
50 mm |
50 mm |
| Yield strength |
HRB 335Mpa (N/ mm2) |
HRB 335Mpa (N/ mm2) |
HRB 335Mpa (N/ mm2) |
HRB 400Mpa (N/ mm2) |
HRB 400Mpa (N/ mm2) |
| Power |
YX3-2（3 kw） |
YX3-2（3 kw） |
YX3-2（3 kw） |
YX3-2（4KW） |
YX3-2（4KW） |
| Material of winding |
Copper+Silicon steel sheet (800) |
Copper+Silicon steel sheet (800) |
Copper+Silicon steel sheet (800) |
Copper+Silicon steel sheet (800) |
Copper+Silicon steel sheet (800) |
| Size of blade(mm) |
83*83*26 |
83*83*26 |
83*83*26 |
90*75*26/90*90*26 |
90*75*26/90*90*26 |
| Material of blade |
Super alloy tool steel(60Si2Mn) |
Super alloy tool steel(60Si2Mn) |
Super alloy tool steel(60Si2Mn) |
Super alloy tool steel(9CrSi) |
Super alloy tool steel(9CrSi) |
| Material of body |
Ductile iron QT500-7 |
Ductile iron QT500-7 |
Ductile iron QT500-7 |
Ductile iron QT500-7 |
Ductile iron QT500-7 |
| Size of body(cm) |
96*20*52 |
96*20*55 |
103*20*58 |
103*22.5*60 |
103*22.5*60 |
| Weight of body (kg) |
186 |
195 |
205 |
237 |
255 |
| Material of shaft |
high quality carbon structural steel C45 |
high quality carbon structural steel C45 |
high quality carbon structural steel C45 |
high quality carbon structural steel C45 |
high quality carbon structural steel C45 |
| Material of Connecting rod |
high quality carbon structural steel(45#)high-energy-rate forging |
high quality carbon structural steel(45#)high-energy-rate forging |
high quality carbon structural steel(45#)high-energy-rate forging |
high quality carbon structural steel(45#)high-energy-rate forging |
high quality carbon structural steel(45#) high-energy-rate forging |
| Material of crankshaft |
Super alloy tool steel（40r) high-energy-rate forging |
Super alloy tool steel（40r) high-energy-rate forging |
Super alloy tool steel（40r) high-energy-rate forging |
Super alloy tool steel（40r) high-energy-rate forging |
Super alloy tool steel（40r) high-energy-rate forging |
| Material of gear |
Ductile iron QT500-7 |
Ductile iron QT500-7 |
Ductile iron QT500-7 |
high quality carbon structural steel(45#) |
high quality carbon structural steel(45#) |
| V-belt |
B type: h=11mm, b=17mm |
B type: h=11mm, b=17mm |
B type: h=11mm, b=17mm |
B type: h=11mm, b=17mm |
B type: h=11mm, b=17mm |
| Size of wheel(mm) |
160*60*6 |
160*60*6 |
160*60*6 |
165*60*6 |
165*60*6 |
| Material of wheel |
Ductile iron QT400-15 |
Ductile iron QT400-15 |
Ductile iron QT400-15 |
Ductile iron QT400-15 |
Ductile iron QT400-15 |
